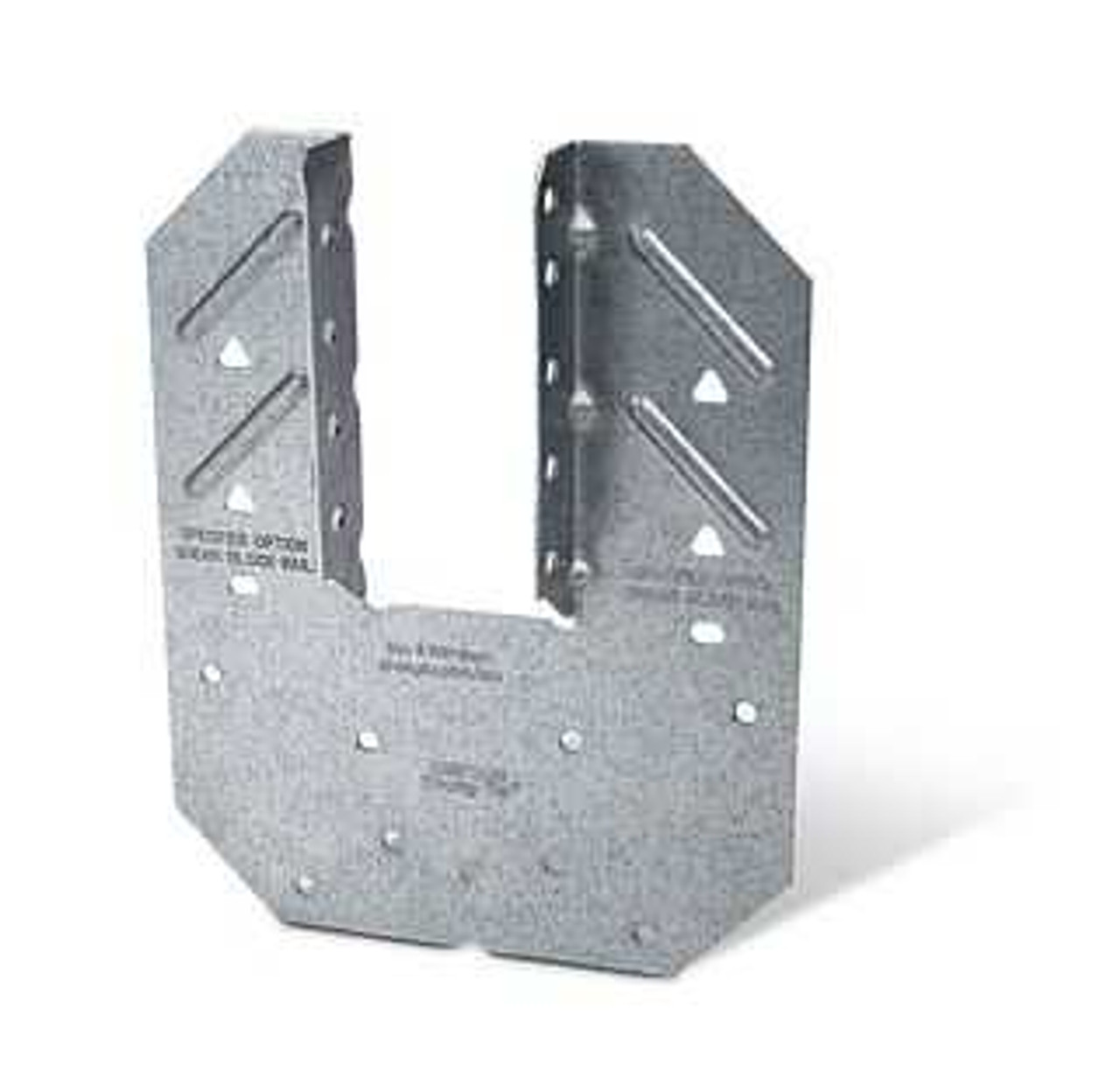

Simpson H10ASS Hurricane Tie Rafter/Truss-To-Wall Plates 316SS 50 Pk

Product Description

H10ASS Simpson Hurricane Tie Rafter/Truss-To-Wall Plates Stainless Steel 316SS (50 Pack) series holds the rafter or truss on both sides for high uplift applications with embossments that add stiffness in crucial areas for improved performance. These U-shaped hurricane ties provide faster installation than using two single-sided ties. H10ASS models come with optional fastener holes to connect roof blocking to the top plate. Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.

Key Features

• Forms part of a continuous load path to resist wind and seismic forces
• The H10A-2 model holds a double-ply member and is approved for installation with the Strong-Drive® SD Connector screw
• The H10AR model is designed for rough lumber sizes

Material

• 18 ga.

Finish

• Galvanized (G90). Selected products available in stainless steel or ZMAX® coating.

Please Note: This product image may represent a range of products; it may not be an exact representation of the product purchased.
