Product Description

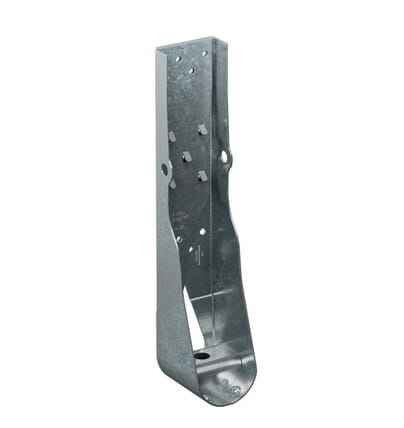

Simpson HDUE7-SDS3 14-11/16" Predeflected Holdown w/SDS Screws - G90 Galvanized (4 Pack)
The Simpson Strong-Tie HDUE7 replaces the HDU5 Holdown and delivers exceptional lateral-load resistance for demanding residential and multi-story applications. Designed with modern construction needs in mind, HDUE holdowns ensure strong, reliable connections for shearwalls, braced wall panels, and other structural elements.
Key Features:
- Enhanced Load Capacity: Engineered to meet increased demands in residential construction, especially for large openings and taller walls.
- Innovative Angled Fastening: Larger models feature screw placement that engages both tension and shear for higher allowable loads with fewer fasteners.
- Predeflected Seat Design: Rounded seat minimizes deflection under load, improving structural stability.
- Overlapping Back Plate: Reinforces steel strength while helping prevent post splitting.
- Optimized Screw Patterns: Designed to reduce wood splitting and maximize fastener performance at the post end.
Finish: G90 Galvanized
Material: Carbon Steel
Additional Info:
CL: 1-1/4"
SO: 1-1/2"
CL: 1-1/4"
SO: 1-1/2"
Base width: 3-3/8"
Fasteners required:
ALL FASTENERS INCLUDED WITH EACH HOLDOWN
• (13) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
• (1) crescent washer
ALL FASTENERS INCLUDED WITH EACH HOLDOWN
• (13) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
• (1) crescent washer
For Treated Lumber: No
Height: 14-11/16"
Manufacturer name: Simpson Strong-Tie
Thickness: 14 Gauge
Width: 2-7/8"
Installation:
Install using the included Strong-Tie SDS Heavy Duty Connector Screws.
