Product Description
High-capacity beam or girder hangers for concrete or masonry applications. Installation is made easier using Strong-Drive® SDS Heavy-Duty Connector screws (provided) into the wood member and Titen HD® anchors (provided) into the masonry.
Finish
- Galvanized. Some products available in stainless steel; see Corrosion Information.
Installation
- Use all specified fasteners (included).

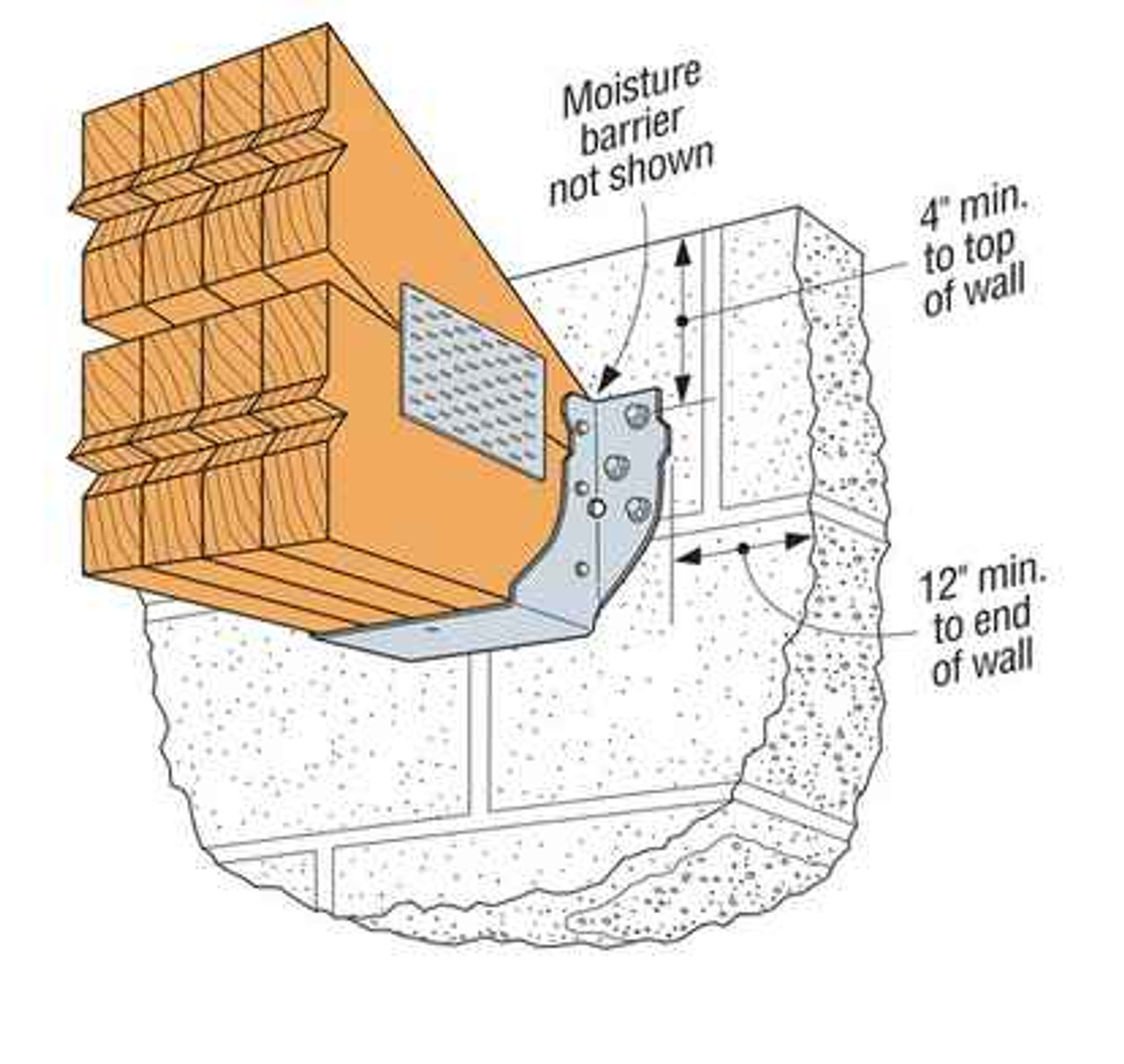

- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors. Note the following:
– Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
– Holes shall be drilled 1/2" deeper than the specified Titen HD length (i.e. 4 1/2" for a 4"-long Titen HD anchor).
– Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity. - Carbon-steel Titen HD is not recommended for exposed exterior applications.
- Provide moisture barrier between beam and wall per jurisdictional requirements.
Please Note: This product image may represent a range of products; it may not be an exact representation of the product purchased.
