Product Description

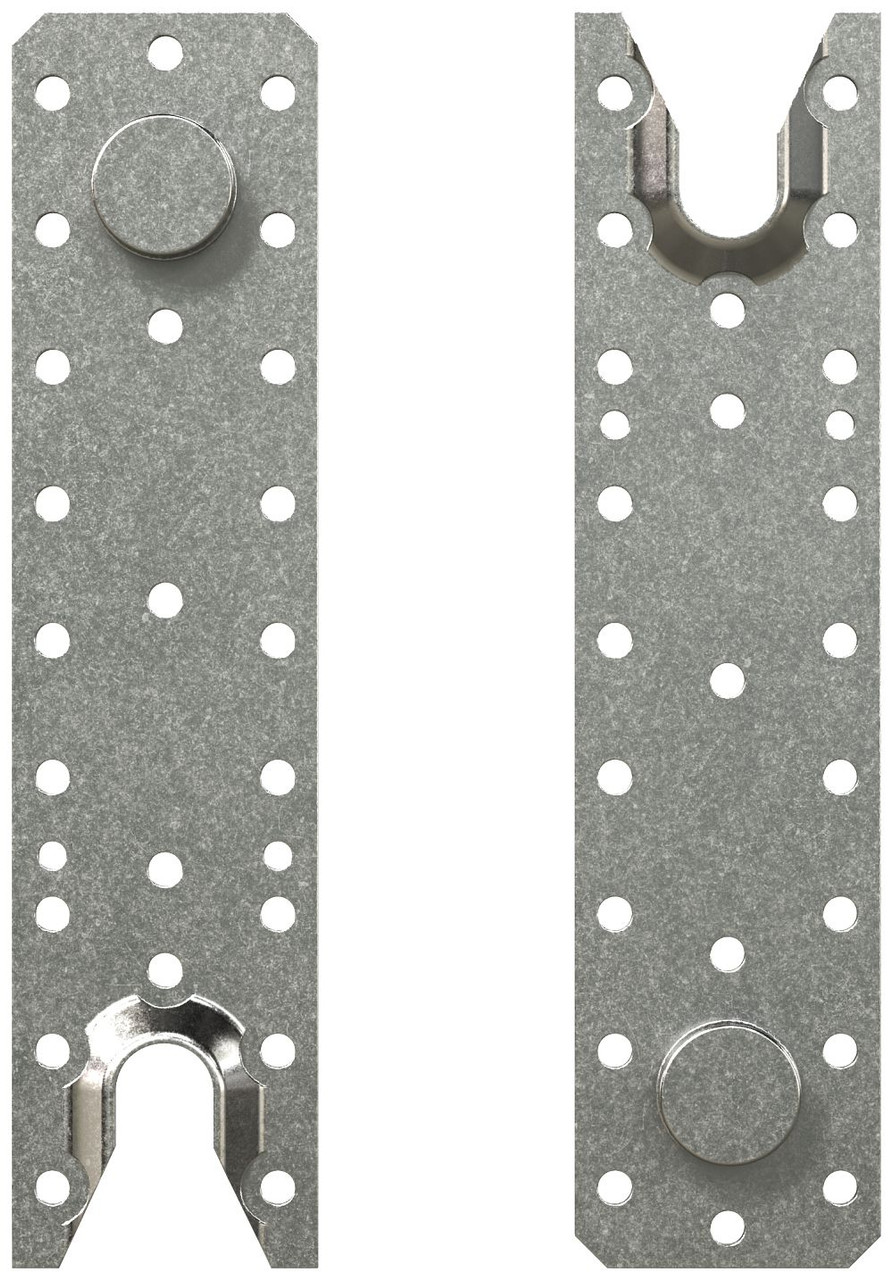

CBH Concealed Beam Hanger
Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The CBH concealed beam hanger is specifically designed for such applications, and is installed with readily available Simpson Strong-Tie SDS Heavy-Duty Connector screws. The CBH has been tested for inter-story drift and has achieved 1-hr and 2-hr fire resistance ratings according to AS E119.
Key Features
- Code-listed per ICC-ESR-2552.
- Concealed for architectural aesthetics and fire-rated performance.
- Multiple router options to suit jobsite needs.
- +/- 1/32-Inch beam length tolerance on each end enables easier installation.
- Seismic deformation compatibility -- Recommended for use at beam-to-beam connections in any Seismic Design Category. At beam-to-column connections, see L-C-CBHDRIFT for more information.
Material
- 3 ga.
Finish
- Electro-galvanized. May be ordered as HDG.
Please Note: This product image may represent a range of products; it may not be an exact representation of the product purchased.
