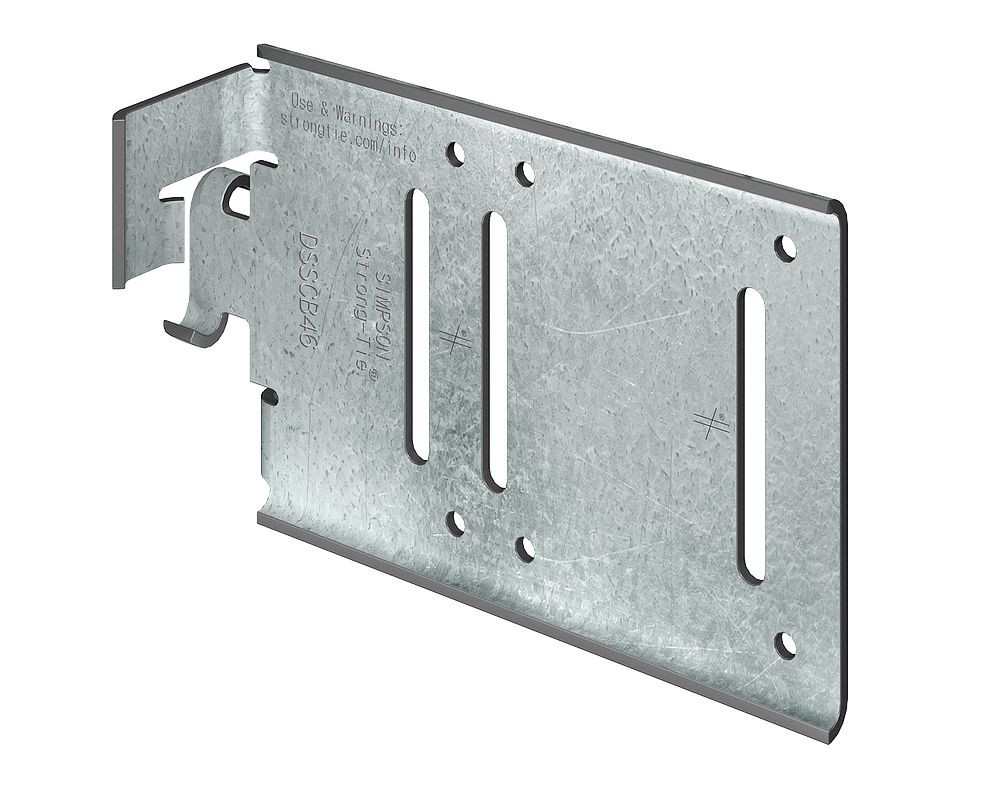

DSSCB Bypass Framing Drift Strut Connector
The solution to accommodate building drift, the DSSCB, is used to support cold-formed steel bypass framing to the edge of a floor slab. The DSSCB also simplifies installation by allowing installers for panelized construction to install finished panels while working off the top of the slab without the need to predrill or preinstall anchors for each clip. It also eliminates the coordination difficulties associated with pre-anchorage of standard bypass clips. With prepunched slots and round holes, the DSSCB is a dual-function connector that can be used for slide-clip and fixed-clip applications.
Key Features
- The clips come in lengths of 3-1/2-Inch, 6-Inch and 8-Inch.
- Prepunched slots provide a full 1-Inch of both upward and downward deflection.
- Precision-manufactured shouldered screws, provided with DSSCB connectors, are designed to prevent overdriving and to ensure the clip functions properly.
- Works with 7/8-Inch and 1 5/8-Inch strut channels as given in the accompanying figures. Common manufactured brands are Unistrut, PHD and B-Line, among others. Struts manufactured that meet the strut requirements shown in the gallery for attachment to steel, CLT or concrete embedment are acceptable.The maximum slide-clip standoff distance is 3-1/8-Inch for 7/8-Inch struts, 3 7/8-Inch for 1 5/8-Inch struts and 2 1/4-Inch for concrete inserts.
- Depending on the application and the designer’s specifications, struts can be either mechanically anchored, welded or cast in place.
- Pre-engineered design solutions are provided for channel strut anchorage.
- Tabulated design values are based on assembly testing to mitigate risk for designers, engineers and architects.
- Optional precast concrete inserts for flush mounting.
- Optional drift stopper, DSHS, for clip alignment flexibility (where drift not required).
Material
- DSSCB — 97 mil (12 ga.), 50 ksi
Finish
- Galvanized (G90)
Installation
- Use the specified type and number of fasteners
Ordering Information
- DSHS drift stopper (DSHS-R100) sold separately
- Replacement #14 shouldered screws for DSSCB connectors are the XLSH78B1414-RP83
Patent Information
- US Patent 10,961,704
