Product Description

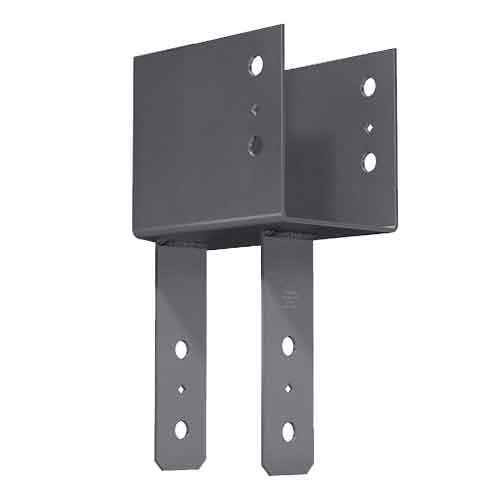

Simpson Strong-Tie ECC66 Column Cap 6X Beam, 6X Post (Single) Simpson Column Caps provide a strong connection for column-beam combinations.
Material
- CC3 1/4, CC44, CC46, CC48, CC4.62, CC64, CC66, CC68, CC6-7 1/8, ECC3 1/4, ECC44, ECC46, ECC48, ECC4.62, ECC64, ECC66, ECC68, ECC6-7 1/8 — 7 gauge; all others — 3 gauge
Finish
- Simpson Strong-Tie gray paint. Some products available in HDG, stainless steel or black powder coat; CCO, ECCO — no coating.
Installation
- Use all specified fasteners; see General Notes
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2015 NDS, section 12.1.3.2)
- Contact engineered wood manufacturers for connections that are not through the wide face
Options
- Straps may be rotated 90° where W1 ≥ W2 (see illustration) and for CC5 1/4-6.
- For special, custom, or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)
- CCO/ECCO — column cap only (no straps) may be ordered for field welding to pipe or other columns. CCO/ECCO dimensions are the same as CC/ECC. Weld by Designer.
- CCOB — any two CCOs may be specified for back-to-back welding to create a cross beam connector. Use the table loads; the load is no greater than the lesser element employed.
Please Note: This product image may represent a range of products; it may not be an exact representation of the product purchased.
