Product Description

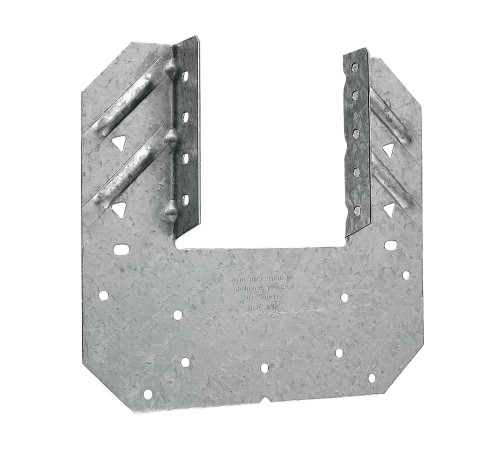

The H10A-2Z series holds the rafter or truss on both sides for high uplift applications with embossments that add stiffness in crucial areas for improved performance. These U-shaped hurricane ties provide faster installation than using two single-sided ties. H10A-2Z models come with optional fastener holes to connect roof blocking to the top plate. Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.
Key Features
- Forms part of a continuous load path to resist wind and seismic forces
- The H10A-2Z model holds a double-ply member and is approved for installation with the Strong-Drive® SD Connector screw
- The H10AR model is designed for rough lumber sizes
Material
- 18 ga.
Finish
- Galvanized (G90). Selected products available in stainless steel or ZMAX® coating.
Please Note: This product image may represent a range of products; it may not be an exact representation of the product purchased.
