Product Description

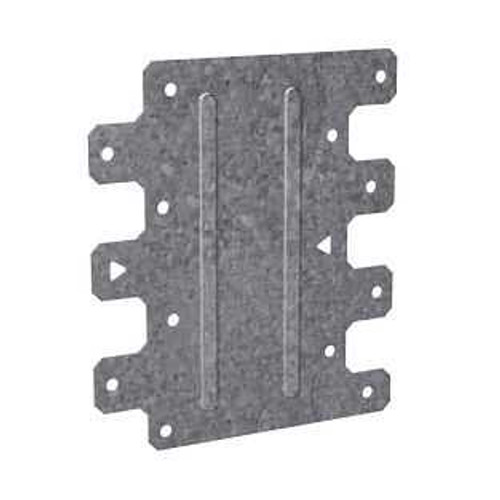

he LTP is designed to transfer shear forces for plate-to-rim board or blocking connections. This lateral tie plate can be securely installed over plywood sheathing or directly to the framing members. The LTP features strategically spaced nail holes to prevent wood splitting for single and double top-plate applications.
Key Features
- Load rated for shear resistance
- Staggered nail patterns to minimize the possibility of wood splitting
- Ability to be installed over plywood sheathing
- Load rated with nails and SD screws
Material
- 20 ga (33 mil)
Finish
- Galvanized (G90). Some products available in ZMAX
Please Note: This product image may represent a range of products; it may not be an exact representation of the product purchased.
