Product Description
SJC connectors have been specifically designed for various CFS joist, rafter and underside of metal-deck applications. The unique clip dimensions enable easy installation on the open side of joists and rafters with up to 3 1/2" flanges and return lips up to 3/4". For metal-deck applications, the prepunched 3/8" holes easily accommodate 6", 8", 10" and 12" on-center metal-deck flutes.
Key Features
- Prepunched holes reduce installation cost by eliminating predrilling
- Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
- Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4"
- 4 1/2" leg length enables soft-side connections for joists with flanges up to 3 1/2"
- Also accommodates kicker-to-metal-deck applications
Material
- SJC — 68 mil (50 ksi); MSJC — 97 mil (50 ksi)
Finish
- Galvanized (G90)

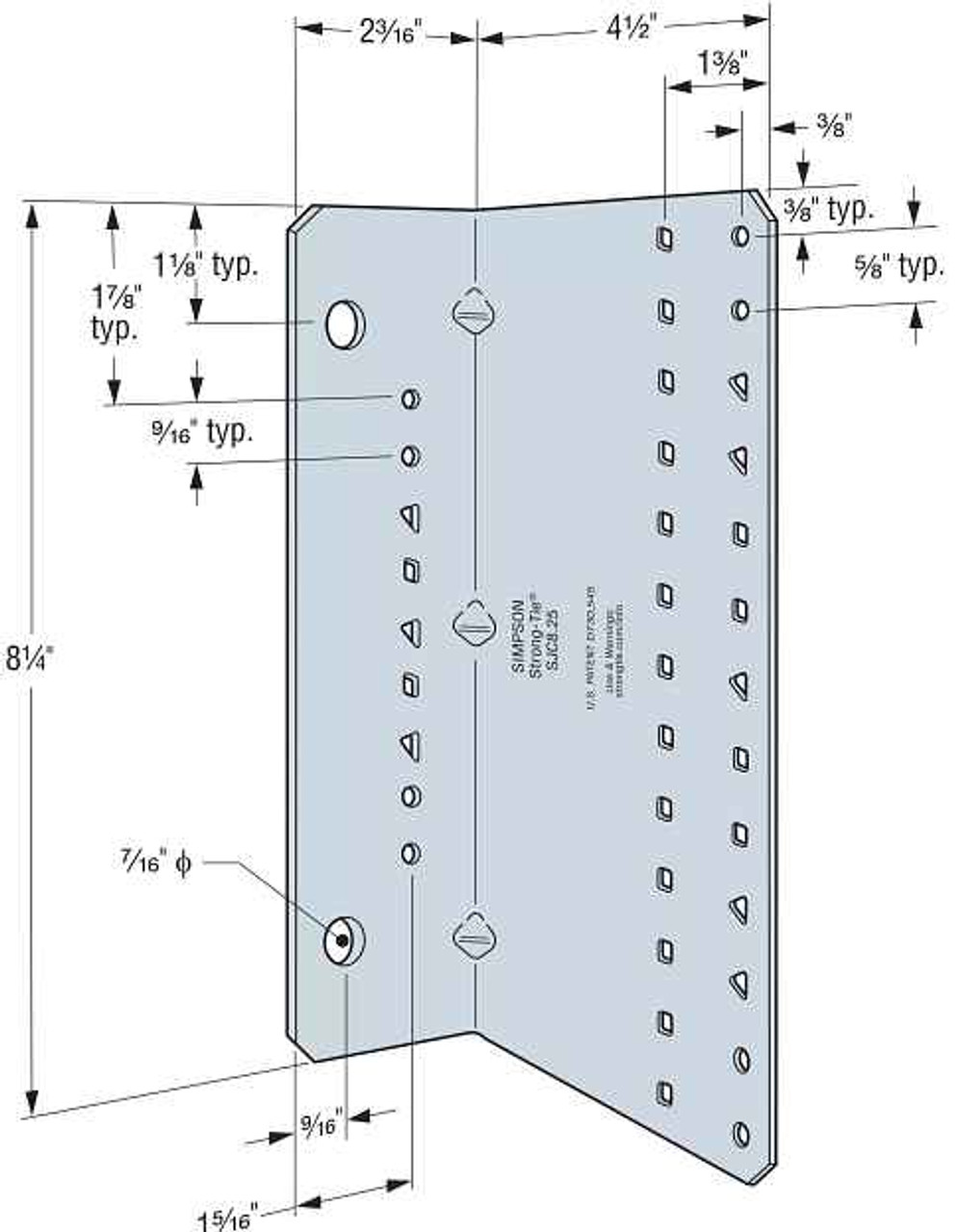

Please Note: This product image may represent a range of products; it may not be an exact representation of the product purchased.
