Product Description

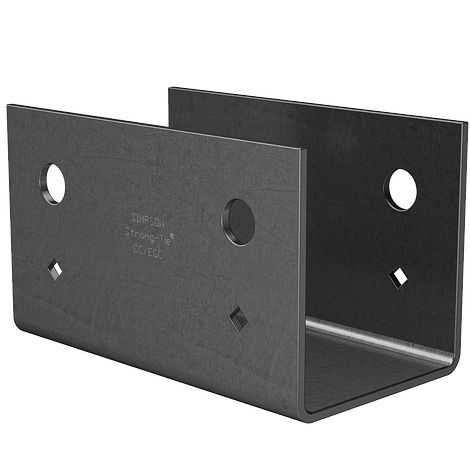

Column Cap CCO4 Simpson Strong-Tie Column-Beam Connector (Single) The CCO is designed to provide strong column-beam connections on top of steel columns. The column cap features a design without legs enabling a field-welded attachment to steel columns and posts. The seat of the column cap provides additional surface area for bearing that extends beyond each side of the column. This helps to distribute the load from the beam and provide support for the connection.
Key Features
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Material
- CCO3 1/4 , CCO4, CCO4/6, CCO4.62, CCO5 1/4, CCO6 — 7 gauge; all others — 3 gauge
Finish
- No coating. Some models available in HDG; see Corrosion Information.
Installation
- Use all specified fasteners
- Weld by designer
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2018 NDS, section 12.1.3.2); bolt holes should be drilled from one side all the way through the beam to maintain hole tolerances
- Contact engineered wood manufacturers for connections that are not through the wide face
Options
- For special, custom or rough-cut lumber sizes, provide dimensions.
- CCO may be ordered for field welding to pipe or other columns. Weld by designer.
Please Note: This product image may represent a range of products; it may not be an exact representation of the product purchased.
