Product Description

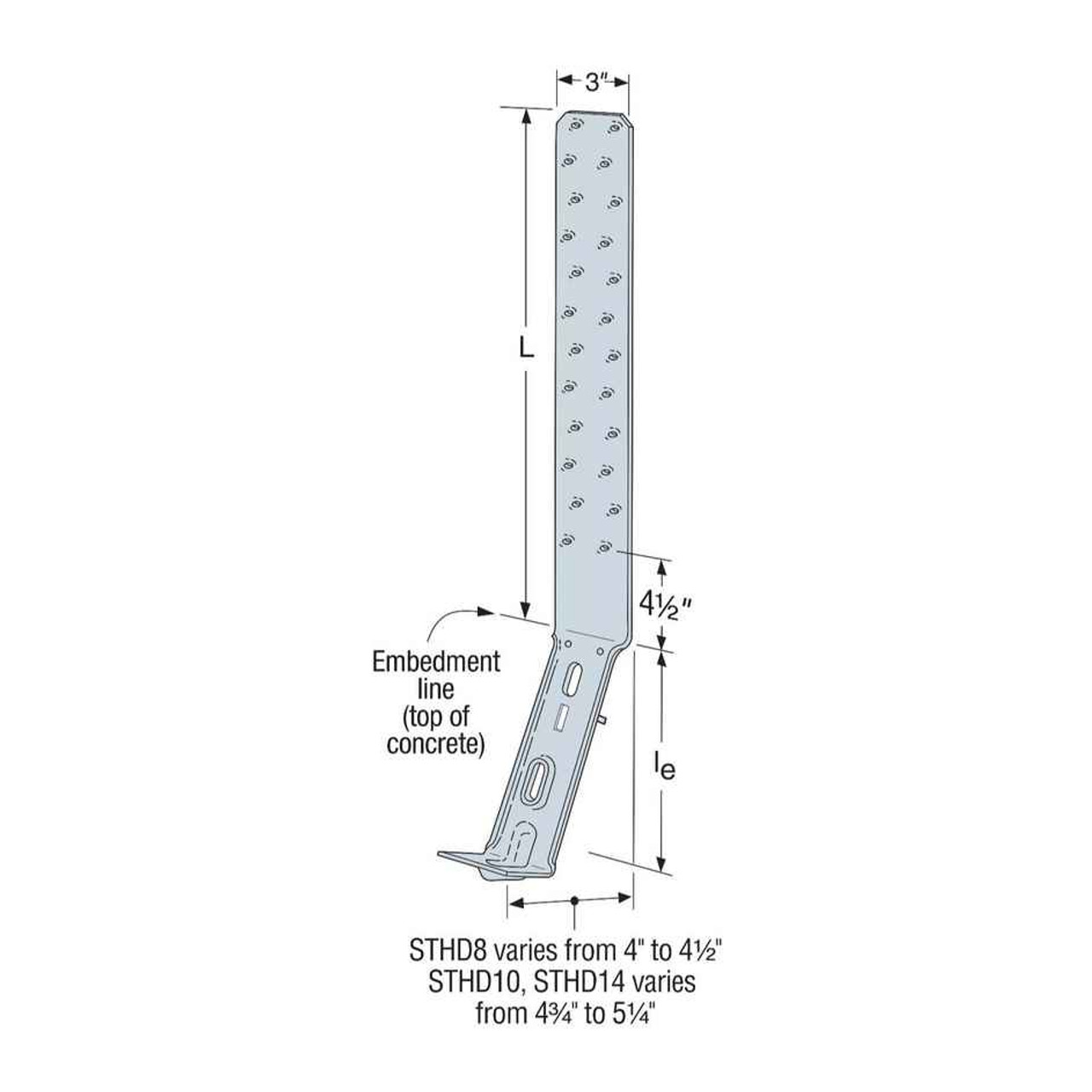

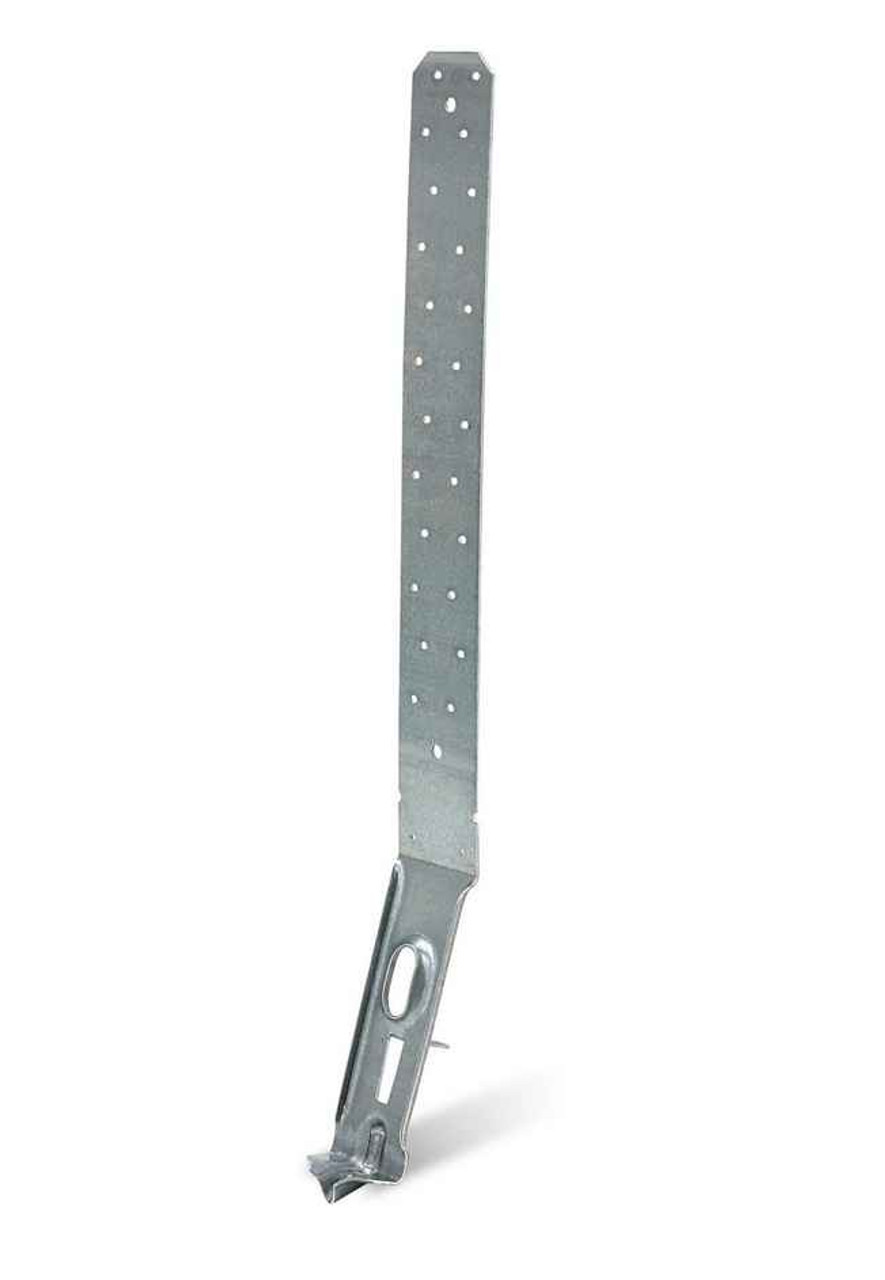

The LSTHD is an embedded strap-tie holdown with features that aid correct installation and improve performance in both wood and cold-formed steel construction. When installed on the forms with the StrapMate® strap holder or other holding device, the unique design of this light cast-in-place strap-tie holdown delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.
Key Features
- The staggered nailing pattern helps to minimize splitting and allows for nailing to the edges of double 2x members
- Strap nail slots are countersunk to provide a lower nail head profile when used with specified fasteners
- The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
Material
- 14 gauge
Finish
- Galvanized
Please Note: This product image may represent a range of products; it may not be an exact representation of the product purchased.
